AMD Quark Tutorial: PyTorch Quickstart#

This tutorial follows on from PyTorch’s own QuickStart documentation, and is designed for brand new users to PyTorch and AI, who might have done just a few machine learning tutorials, and are interested in learning about quantization for compressing AI models.

Don’t worry if you’re not an expert! The goal here to to learn by doing, and to have a bit of fun visualizing things as we go. We’re going to introduce theory and new concepts as we build things in Notebooks.

What You Will Learn#

AMD Quark basic installation.
How to use Quark to quantize the weights of a model in PyTorch.
How to compare the model’s accuracy before and after quantization.
Checking if the quantized model still correctly detects your hand-drawn shoe image!

Installation and Set-Up#

Quark and Dependencies#

Let’s create a Python environment for this tutorial, and install PyTorch and Quark. You can refer to the Recommended First Time User Installation to get Quark, and its dependencies, set up quickly. If you’re on Windows, we do recommend using Ubuntu via WSL (Windows Subsystem for Linux) through the Terminal application for your first projects.

For example; I have a Windows 11 machine:

I installed Ubuntu, and Windows Terminal from the Microsoft Store application.
I then opened the Terminal application, and an Ubuntu tab in it.
In Ubuntu I installed Miniforge.
I then created an environment for these notebooks,
And installed the rest of the dependencies listed in the Recommended First Time User Installation guide, above.

Note that the build-essential package installs a C++ compiler on the main path in Ubuntu, not within our Python environment. We need the C++ compiler later in this tutorial for compiling Quark kernels. That step is just a little trickier to set up outside of Ubuntu, so using WSL is going to save us some fuss for our first tutorial.

Jupyter Notebook#

If you haven’t done so already, you can install Jupyter Notebook into your Python environment, and the very useful visualization package matplotlib, which we will use in this tutorial: pip install notebook matplotlib.

Define Directory to Reuse Data#

Machine learning models, and the input data for training and testing them, can get very large, especially if we have multiple copies on the same machine. Let’s set a sensible location for downloading and loading our models. Be careful not to put this on a shared or cloud-synced folder. If you are on a machine with multiple users, this might be a directory everyone can access.

I’m going to use an environment variable called LOCAL_MODEL_CACHE that I have defined offline for our server, but you can put any path here.

import os
if os.environ.get('LOCAL_MODEL_CACHE') is not None:
    data_path = os.environ['LOCAL_MODEL_CACHE']
else:
    data_path = "./model_cache/"

Recap - MNIST Fashion#

If you haven’t done so already, complete the PyTorch QuickStart, and the Learn the Basics series that explains the parts there. We’ll start with the code for that completed example. Recall that this model uses Zalando’s FashionMNIST version - little pictures of shoes and t-shirts - of the very well known MNIST data set.

Let’s recreate the example. Recall that the first part downloads the test and training set, and then splits those up into batches with the PyTorch data loader.

import torch
from torch import nn
from torch.utils.data import DataLoader
from torchvision import datasets
from torchvision.transforms import ToTensor

# Download training data from open datasets.
training_data = datasets.FashionMNIST(
    root=data_path, # Use the data path we defined earlier.
    train=True,
    download=True,
    transform=ToTensor(),
)

# Download test data from open datasets.
test_data = datasets.FashionMNIST(
    root=data_path, # Use the data path we defined earlier.
    train=False,
    download=True,
    transform=ToTensor(),
)

batch_size = 64

# Create data loaders.
train_dataloader = DataLoader(training_data, batch_size=batch_size)
test_dataloader = DataLoader(test_data, batch_size=batch_size)

for X, y in test_dataloader:
    print(f"Shape of X [N, C, H, W]: {X.shape}")
    print(f"Shape of y: {y.shape} {y.dtype}")
    break

# Determine device to use for training. Change this to match your PyTorch install.
device = "cpu"

print(f"Using {device} device")

Recall that we can use matplotlib to visualize the images in our data set by indexing into it.

import matplotlib.pyplot as plt

sample_idx = 123 # Or any index you like.

# The training data returns the image data, as a tensor, and a number for the label (category).
img, label = training_data[sample_idx]

# The label is an index number too, so we can map it to a string that's more intuitive to read.
labels_map = {
    0: "T-Shirt",
    1: "Trouser",
    2: "Pullover",
    3: "Dress",
    4: "Coat",
    5: "Sandal",
    6: "Shirt",
    7: "Sneaker",
    8: "Bag",
    9: "Ankle Boot",
}

plt.title(labels_map[label])
plt.axis("off")
plt.imshow(img.squeeze(), cmap="gray") # The images are grayscale, so set that here to display correctly.
plt.show()

We also defined a simple model to use.

# Define model
class NeuralNetwork(nn.Module):
    def __init__(self):
        super().__init__()
        self.flatten = nn.Flatten()
        self.linear_relu_stack = nn.Sequential(
            nn.Linear(28*28, 512),
            nn.ReLU(),
            nn.Linear(512, 512),
            nn.ReLU(),
            nn.Linear(512, 10)
        )

    def forward(self, x):
        x = self.flatten(x)
        logits = self.linear_relu_stack(x)
        return logits

And training and test functions.

def train(dataloader, model, loss_fn, optimizer):
    size = len(dataloader.dataset)
    model.train()
    for batch, (X, y) in enumerate(dataloader):
        X, y = X.to(device), y.to(device)

        # Compute prediction error
        pred = model(X)
        loss = loss_fn(pred, y)

        # Back propagation
        loss.backward()
        optimizer.step()
        optimizer.zero_grad()

        if batch % 100 == 0:
            loss, current = loss.item(), (batch + 1) * len(X)
            print(f"loss: {loss:>7f}  [{current:>5d}/{size:>5d}]")

Note that I have made a small change to this function to help us collect accuracy statistics. That’s just a return statement at the end.

def test(dataloader, model, loss_fn):
    size = len(dataloader.dataset)
    num_batches = len(dataloader)
    model.eval() # Put model into evaluation mode.
    test_loss, correct = 0, 0
    with torch.no_grad():
        for X, y in dataloader:
            X, y = X.to(device), y.to(device)
            pred = model(X)
            test_loss += loss_fn(pred, y).item()
            correct += (pred.argmax(1) == y).type(torch.float).sum().item()
    test_loss /= num_batches
    correct /= size
    ## I added this section at the end to help make a comparison table later:
    print(f"Test Error: \n Accuracy: {(100*correct):>0.1f}%, Avg loss: {test_loss:>8f} \n")
    return correct, test_loss

We then ran our training and testing for a number of epochs. Note here that we printed out the accuracy, and average loss at each epoch. These numbers will be important to compare against later, when we have a quantized version of this model. Remember, we can increase the number of epochs to gain some accuracy at the expense of more training time.

Try changing the number of epochs below to higher numbers, e.g. 5, 10, 20. Run the code section again, and watch what happens to the accuracy result.

model = NeuralNetwork().to(device)

# Print the model structure.
print(model)

loss_fn = nn.CrossEntropyLoss()
optimizer = torch.optim.SGD(model.parameters(), lr=1e-3)

model_acc = 0
model_loss = 0

epochs = 5 ## Increase this to improve accuracy.
for t in range(epochs):
    print(f"Epoch {t+1}\n-------------------------------")
    train(train_dataloader, model, loss_fn, optimizer)
    model_acc, model_loss = test(test_dataloader, model, loss_fn)
print("Done!")

With 10 epochs, my model achieved 71.0% accuracy, with average loss of 0.789085.

Record the results of each training session you run. Your numbers will differ from mine given the use of random numbers in creating the artificial neural network. We will use this as a reference later.
In Visual Studio code, you may need to change to a “scrollable element” to see all of the output text.

We also saved and loaded copies of our model.

torch.save(model.state_dict(), "model.pth")
print("Saved PyTorch Model State to model.pth")

The model is saved as a serialised Python state dictionary, and here is about 2MB on disk. We’ll make a quantized version of this shortly, replacing our float weights with smaller, 8-bit integer weights. If you imagine that most of a model’s size is from 32-bit float weights, we could shrink it down to about 25% of the size by converting weights to 8-bit integers. That won’t matter much for our small model, but it will give us an idea of how this might be really useful for shrinking large gigantic language models down to more manageable sizes.

2,681,332 model.pth

At this point we can run our model in inference mode to see if it can predict an image. You can change the value of i, below to see if it is correctly classifying models from our test data.

classes = [
    "T-shirt/top",
    "Trouser",
    "Pullover",
    "Dress",
    "Coat",
    "Sandal",
    "Shirt",
    "Sneaker",
    "Bag",
    "Ankle boot",
]

model.eval()
i = 0
x, y = test_data[i][0], test_data[i][1]
with torch.no_grad():
    x = x.to(device)
    pred = model(x)
    predicted, actual = classes[pred[0].argmax(0)], classes[y]
    print(f'Predicted: "{predicted}", Actual: "{actual}"')

As a computer graphics guy I thought this was a bit dry, and I wanted to see if it could predict an image that I hand-drew for a bit of visual feedback. You might like to give this a go. Here’s my lovely artwork for a shoe and a t-shirt:

anton’s shirt anton’s shoe

You need to make the image in the same format at MNIST - that’s 28x28 pixels grayscale.

Create your own 28x28 pixel grayscale image, using e.g. GIMP, and save it as my_shirt.jpg in the notebook directory.

Let’s just check that my sample images are on the right path, by loading them up and displaying them with matplotlib:

import matplotlib.image as mpimg # For reading images from files.

img1 = mpimg.imread('anton_2828_shoe.jpg')
img2 = mpimg.imread('anton_2828_shirt.jpg')

plt.axis("off")
# Note that these images are not in a tensor, and so do not need to be "squeezed" first.
plt.imshow(img1, cmap="gray")
plt.show()
plt.axis("off")
plt.imshow(img2, cmap="gray")
plt.show()

You can load these up easily using the PIL package, and convert them to a tensor representation using `ToTensor <https://pytorch.org/vision/main/generated/torchvision.transforms.ToTensor.html>`__.

Uncomment the filename you wish to test against - your hand-drawn image is user_input.jpg.
Comment out my images and add in your own hand-drawn image filename.

from PIL import Image # for loading images after training

## Choose one:
#img = Image.open('your_28x28_image.jpg')
img = Image.open('anton_2828_shirt.jpg')
#img = Image.open('anton_2828_shoe.jpg')

# The image data needs to be "unsqueezed" into a tensor representation.
img_tensor = ToTensor()(img).unsqueeze(0).to(device)
answer = torch.argmax(model(img_tensor))
print(f'Predicted: "{classes[answer]}"')

Let’s print out our model now, and have a look at it’s structure and data types. We’ll modify this model by quantizing it with Quark in the next section, then print it again to spot the differences.

print(model)

Quantize the Model#

Now we’re going to quantize our model with AMD Quark, and do a before-and-after comparison of accuracy. This is a lot like choosing a lossy image compression level with a JPEG-format image.

Quantizing a model after training is called post-training quantization (PTQ). This should compress a model, giving us both a smaller memory footprint and lower bandwidth for inference. But we expect some accuracy loss, because the values of weights will have changed slightly with lower precision numbers.
It’s possible to quantize a model before training, which can reduce the accuracy loss. This is called quantization-aware training (QAT).

Quark supports both PTQ and QAT. For now we are just going to use PTQ.

Create a Quantization Configuration#

We’re going to convert just the weights in our model from their default, float representation, to an 8-bit int. We set this in Quark by creating a quantization configuration. Quark allows us to get specific with how it should do this. For our first quantized model we are just going to leave the specification for our int8 tensors set to sensible defaults. These are given in the examples that ship with Quark. If we want to squeeze the absolute most accuracy out of quantization, it’s possible to come back and tweak the configuration and see if it works better for a model.

# Import Quark components.
from quark.torch.quantization.config.config import Config, QuantizationConfig
from quark.torch.quantization import Int8PerTensorSpec

# Define a specification for our int8 data type with some sensible defaults; which techniques to use to convert from float to int.
DEFAULT_INT8_PER_TENSOR_SYM_SPEC = Int8PerTensorSpec(observer_method="min_max",
                                      symmetric=True,
                                      scale_type="float",
                                      round_method="half_even",
                                      is_dynamic=False).to_quantization_spec()

# Create a "quantization config" for Quark with our sensible starting parameters.
DEFAULT_W_INT8_PER_TENSOR_CONFIG = QuantizationConfig(weight=DEFAULT_INT8_PER_TENSOR_SYM_SPEC)

quant_config = Config(global_quant_config=DEFAULT_W_INT8_PER_TENSOR_CONFIG)

Create a Calibration Data Set#

Quark needs to determine appropriate value ranges for quantization, and it uses a calibration data set to do this, which should be representative of our training and test data.

Note that some available data sets will already have specific calibration sets for you to use, but we will quickly build our own calibration data set from some of our test images:

qmodel_acc, qmodel_loss = test(test_dataloader, model, loss_fn)

print(f"Original model:  Accuracy: {(100*model_acc):>0.1f}%, Avg loss: {model_loss:>8f} \n")
print(f"Quantized model: Accuracy: {(100*qmodel_acc):>0.1f}%, Avg loss: {qmodel_loss:>8f} \n")

calib_dataloader = DataLoader(test_data, batch_size=32)

Create the Quantized Model#

With those two ingredients;

We create a Quark quantizer object giving our configuration as a parameter.
Create a quantized model, giving as parameters the original model, and our calibration data set loader.

from quark.torch import ModelQuantizer

quantizer = ModelQuantizer(quant_config)
quant_model = quantizer.quantize_model(model, calib_dataloader)

Hopefully, you saw an output that looked like this:

[QUARK-INFO]: Weight only quantization end.

[QUARK-INFO]: Model quantization has been completed.

Test the Quantized Model Accuracy#

Our quantized model is also a PyTorch model. We can call the same test() function we used during our training epochs, but using our new quantized model quant_model, in place of the original model.

qmodel_acc, qmodel_loss = test(test_dataloader, quant_model, loss_fn)

print(f"Original model:  Accuracy: {(100*model_acc):>0.1f}%, Avg loss: {model_loss:>8f} \n")
print(f"Quantized model: Accuracy: {(100*qmodel_acc):>0.1f}%, Avg loss: {qmodel_loss:>8f} \n")

Now, if we did our quantization job right we should see accuracy very close to the original model, and very little additional loss.

Congratulations - you’ve quantized your first model!

In our small model, we will probably get away without much tweaking of additional settings to retain almost all of our accuracy. As we move on to more sophisticated models in the next tutorials, we will look at what Quark features are available to minimise our accuracy lost from quantization to smaller data types. We will need to choose different quantization techniques to suit different types of model; language models, vision models, and models of different sizes might require different treatment, and we might choose to use different workflows in Quark.

Check Our Hand-Drawn Images#

And for a bit more personal feedback - is our quantized model still accurate enough to recognise our hand-draw image, which might not be so photo-realistic as the test images?

from PIL import Image # for loading images after training

## Choose one:
#img = Image.open('user_input.jpg')
#img = Image.open('anton_2828_shirt.jpg')
img = Image.open('anton_2828_shoe.jpg')

img_tensor = ToTensor()(img).unsqueeze(0).to(device)
answer = torch.argmax(quant_model(img_tensor))
print(f'Predicted: "{classes[answer]}"')

Simulated Quantization#

Let’s also save the quantized model to a file.

torch.save(quant_model.state_dict(), "qmodel.pth")
print("Saved quantized PyTorch Model State to qmodel.pth")

Let’s have a look at that file - we’re expecting a saving of space right?

Filename	Size on disk
model.pth	2681332
qmodel.pth	2687718

It’s gotten slightly bigger! What have we missed?

Like similar quantizers, Quark is using a process called fake quantization, or simulated quantization. That means it’s not actually swapping the data types for the smaller ones and making the saving of memory, yet.

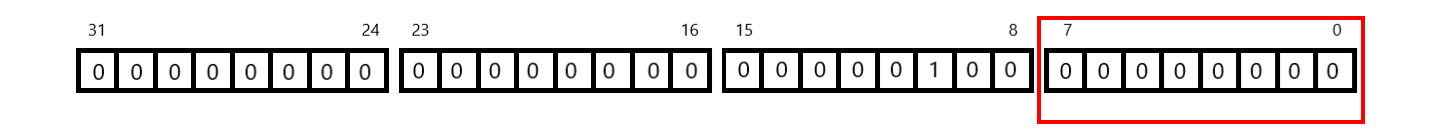

Image of a 32 bits float used to store an 8-bit integer#

What’s actually happening is that the the quantizer is creating the smaller, 8-bit, data type within the memory used by the original 32-bit float, leaving most of the bits unused. The values are then dequantized back to floats. This is a processed called Q/DQ or quantize/dequantize. This lets us use the quantizer to simulate the accuracy loss of swapping to that, lower-precision, data type. We can then experiment, using the various knobs and dials in the quantizer configuration to optimize our quantized model’s accuracy for the quantized data type.

So we end up with a less accurate version of the model without any memory saving? How do we actually get the bandwidth and memory saving we want? The trick here is in Quark’s export flows. In the next tutorials, we will look at different options for exporting the quantized model to some popular formats. The export formats will include additional data type hints to tools you’ll use at the next stage in your workflow. These tools can then make the data type replacements. Then you’ll get your smaller model. They can also do all sorts of additional performance optimizations to improve the operations in your model for a particular machine you want to run it in inference mode on.

You can read an overview of quantization in Introduction to Quantization.

We can print our quantized model, and compare it to the structure we saw at the end of the previous section. What differences can we observe?

print(quant_model)

Our Linear layers have been changed to a new layer type called QuantLinear.
- The shape is the same.
- There is a new ScaledFakeQuantize addition that contains the quantization parameters; data type (int8), per-tensor scheme, scale, and zero-point, and a min and max range corresponding to the numerical range of an 8-bit integer (-128 to 127).
- A per-tensor observer has collected the minimum and maximum values from each tensor.

With this information we can see that our quantization has worked. We can see a single scale value has been created by Quark for each tensor, based on each tensor’s actual maximum and minimum values. In Introduction to Quantization we read that the quantization formula for each value is:

q = round( r / s + z )

Where our quantized value, q, is derived from the original value r by scaling by s to fit the new data range, and offsetting it by z to center it around a “zero point”. What Quark is therefore doing is determining the best scale for each tensor; how to squish the actual range of values used in each tensor into the the numerical range of the new data type.

There is no one-size-fits-all quantization configuration for best size and accuracy. Some schemes suit different models, different data types, and different machines, better than others. There are different options here - the scaling, range, rounding method, per-tensor or per-group, data type, and so on, are all choices that we might tweak in our quantization configuration step to get the most out of a particular model. We use Quark do some trial-and-error experimentation for better results, or recreate recipes of known good results prepared by researchers.

We can also see why our toy-sized model might be a bit larger when saved - it has added information at each layer. With larger models, and when we export to formats that natively support quantized data types, we will see considerable size compression.

Troubleshooting#

Kernel errors mentioning path to “cl” not found#

You may also see errors like "AttributeError: module 'quark.torch' has no attribute 'kernel'"

On Windows, cl.exe is the compiler & linker tool for Microsoft Visual Studio. For your first tutorial we suggest using Ubuntu inside a Terminal on Windows, which will use the GCC compiler instead, which will be found on the path. If you are intending to run directly on Windows with Visual Studio instead, then you need to install Visual Studio, as per the Advanced Installation guide for Quark, and make sure that your Notebook shares the path to the Visual Studio command line tools.

Next Steps#

In the next tutorial we’re going to build a prompt-to-image generation Notebook, visualize the output, then quantize it with different data types and see if we can spot any quality difference in the images the quantized models produce. We will follow on by looking at language models and chat prompts, and exporting models from Quark for inference runtimes outside of PyTorch.

AMD Quark Tutorial: PyTorch Quickstart

Contents
